nanoCAD v.5
software CAD gratuito
nanoCAD Free oferece uma interface familiar com suporte nativo a DWG. Este software CAD gratuito e fácil de usar, sendo a versão legada 5 da plataforma, é adequado tanto para uso individual quanto empresarial em projetos sem fins lucrativos. O registro e a renovação anual da licença são totalmente gratuitos.
Descubra as capacidades aprimoradas do nanoCAD 25
O que obtém com o nosso
software CAD gratuito
.svg)
.svg)
.svg)

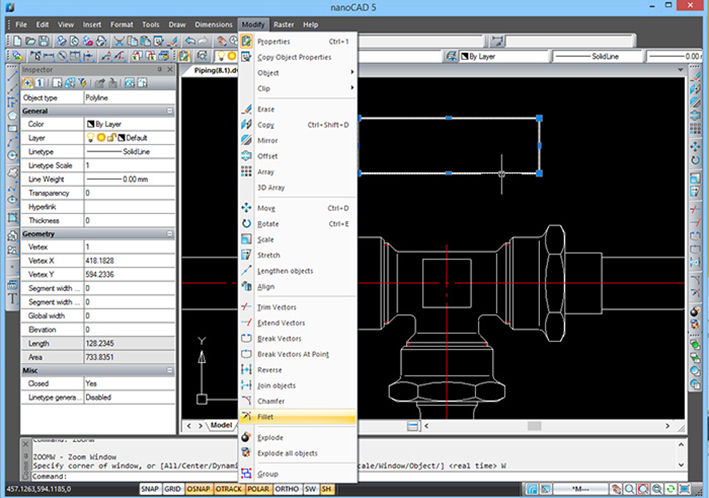

Conjunto abrangente de ferramentas para
desenho 2D e visualização 3D
nanoCAD Free é o primeiro passo para automatizar seu processo de design. É gratuito com funcionalidades limitadas, mas suficientes para apoiar empresas e indivíduos em projetos não comerciais. Para estender a funcionalidade, você pode sempre fazer o upgrade para a nanoCAD Platform e aproveitar o conjunto completo de ferramentas para liderar seu setor.
O que mais o nanoCAD Free oferece
O que você não obtém com nosso
software CAD gratuito
- Leitura/escrita DWG 2018
- Entrada dinâmica no cursor

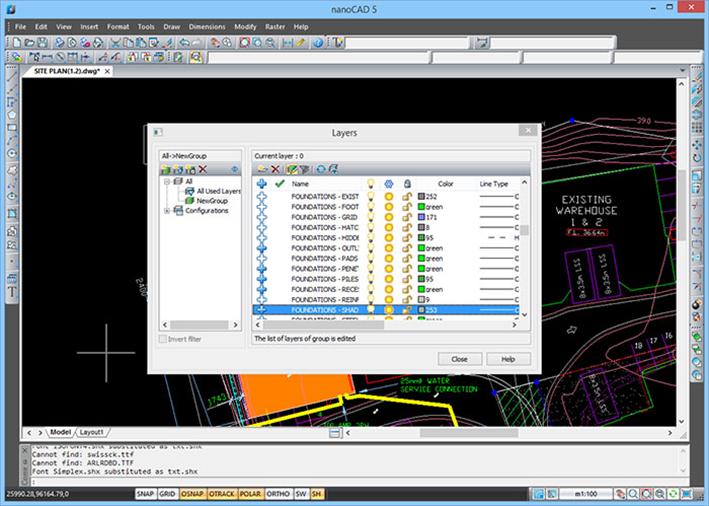

- Controles avançados de camadas
- Hachura associativa
- Modelagem de sólidos 3D
- Visualizações de ações de desfazer e refazer
- Design paramétrico 2D
- Objetos de biblioteca com propriedades paramétricas
- Explorador de desenhos
- Paletas de ferramentas
- Plotagem em lote
- Importação IFC
- Subjacências de PDF
- Edição de raster
- Importação/exportação de nuvem de pontos de arquivos LAS, BIN, PTX, PTS, PCD e XYZ
- Suporte técnico
- Interface de usuário personalizável
- Atualizações anuais com assinatura
Todos esses recursos se encontram no nanoCAD 25
Veja a tabela de comparação do nanoCAD 5 Free e do nanoCAD 25 e faça sua escolha.
CAD gratuito e antigo é bom para o básico
Como o nanoCAD 25 atende aos requisitos profissionais
Eficiência máxima
Use mais de 1.500 novos comandos lançados pela Nanosoft nos últimos 8 anos para realizar seus melhores projetos.
Início rápido com nanoCAD 25
Navegue pela interface de faixa de opções amigável com facilidade usando o Localizador, entrada dinâmica, pop-ups de comando e dicas instantâneas.
Trabalhar com objetos grandes
Trabalhe com imagens raster, subjacências de PDF, nuvens de pontos, dados IFC, modelos 3D ricos em dados e arquivos super grandes devido ao desempenho aprimorado.
Dados seguros e organizados

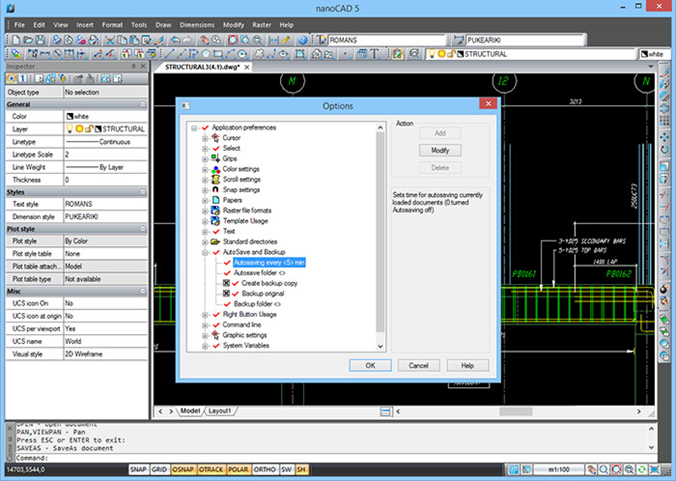

Use as funções de salvamento automático e backup para salvar seus dados; confie em referências externas para manter seus desenhos organizados.
Mais do que apenas uma ferramenta de desenho
Personalize o software de acordo com as necessidades específicas do seu setor com módulos adicionais: Mechanica, 3D Solid Modeling, Construction, Raster and Topoplan.
Trabalhe em um ambiente colaborativo
Abra, edite, salve e troque arquivos com outros softwares CAD graças ao suporte aos formatos mais recentes *.dwg, *.dxf, *.dwt.
Uma linha de apoio especializada e suporte técnico
Conte com a equipe de suporte da Nanosoft para obter respostas rápidas para suas perguntas, conselhos especializados e informações úteis para avançar em seu projeto.
Mantenha-se na liderança com atualizações anuais
Aproveite atualizações regulares do software e novos recursos todos os anos, porque somos imparáveis.
Comece hoje com uma avaliação gratuita de 30 dias e potencialize seus projetos com ferramentas profissionais por apenas US$289/ano para levá-los ao próximo nível.
Experimente o nanoCAD 25 gratuitamente
FAQ nanoCAD Free
Yes, nanoCAD v.5 is completely free to non-commercial use, making it a highly accessible CAD software for users. Registration on our website is the only requirement. After registering, you gain unlimited access to all the tools and features within the program at no cost. We are committed to offering a full-fledged CAD solution that caters to both professionals and hobbyists, entirely free of charge. Enjoy the full spectrum of our free CAD software capabilities without spending a dime.
You can access the nanoCAD User Guide in PDF format in the following ways:
- Go to the Start menu and look for the nanoCAD folder for access to the guide and additional resources that you can download.
- Navigate to the directory: C:\Program Files (x86)\Nanosoft AS\nanoCAD en 5.0\help to find and download the User Guide directly from your computer.
Activating the free version of nanoCAD is a simple and hassle-free process:
- Register on our website, log into your personal account and generate a Serial Number by clicking the Get Serial Number button of nanoCAD 5 Free.
- Download the nanoCADver.5 software from your account or click the Download button on our website.
- Install the software and enter the serial number from your account when prompted.
- Launch nanoCAD and start using it at no cost.
nanoCAD Free is intended for non-commercial use. You may not use nanoCAD Free as part of any project intended for commercial distribution or or for use internally to produce revenue or benefit.
The free version of nanoCAD includes basic functionalities such as native DWG support, creating and editing DWG files, layer management, and basic 3D modeling features. However, it lacks some advanced features available in paid versions, such as tool palettes, sheet sets, and more comprehensive 3D modeling tools. Advanced user interface options like the ribbon interface, dynamic input, and custom command creation are also exclusive to the paid versions. For detailed comparisons and specific features, please visit the nanoCAD comparison page. This page provides an in-depth look at the differences, highlighting what functionalities are available in the free software version versus what additional features and capabilities are unlocked with the paid versions
nanoCAD files are saved in the DWG format, making it an effective free DWG editor. This compatibility allows users to easily create, edit, and manage their designs, ensuring a seamless workflow with other CAD software that utilizes the DWG format.
Yes, you can open DWG files in nanoCAD Free. However, It’s important to note that although nanoCAD supports a wide range of DWG file versions, the newest DWG formats may encounter some compatibility issues or limitations. This means that while you can typically work seamlessly with most DWG files, files saved in the most recent formats from other software might occasionally present challenges.
nanoCAD Free supports DWG file versions up to 2013 only. Please verify the version of your DWG file by following these steps:
If your file is version 2013 or earlier and you still encounter issues, attempt to recover the file by using nanoCAD Platform:
- Open the DWG file with any text editor (such as Notepad).
- At the beginning of the file, you will find a code in the format: AC10XX, where "XX" varies and could be 32, 27, 24, 21, etc.
- The code "AC1032" indicates that the file is in the DWG 2018 format. To work with DWG files of this format, upgrade to the nanoCAD Platform.
If your file is version 2013 or earlier and you still encounter issues, attempt to recover the file by using nanoCAD Platform:
- Run nanoCAD 24, then call the RECOVER command to open the file.
- Unfreeze, unlock and turn on all layers.
- Call the RMPROXY command - Nongraphicalproxies to remove proxy objects which do not have a graphic. You can also use the XPROXY command to explode visible proxy-entities.
- Use the Purge command to clear waste objects. We also advice to use the PURGE command (works in the command line, without dialog) and use its different options, especially ANnotscales and sorTTable
- Select all, then call the Flatten command. You can do it twice, because some objects can be flattened only the second time.
- Use the Audit command.
- Use the Audit Geometry command twice: first audit z-coordinates, then hatches.
- Sometimes it is necessary to repeat steps 3-6 several times to fix the file.
If you're experiencing issues with drawings, such as performance problems or freezing, it's recommended to use the utilities available in the nanoCAD Platform to fix these errors.
After installation try next:
After installation try next:
- Run nanoCAD 24, then call the RECOVER command to open the file.
- Unfreeze, unlock and turn on all layers.
- Call the RMPROXY command - Nongraphicalproxies to remove proxy objects which do not have a graphic. You can also use the XPROXY command to explode visible proxy-entities.
- Use the Purge command to clear waste objects. We also advice to use the PURGE command (works in the command line, without dialog) and use its different options, especially ANnotscales and sorTTable
- Select all, then call the Flatten command. You can do it twice, because some objects can be flattened only the second time.
- Use teh Audit command.
- Use the Audit Geometry command twice: first audit z-coordinates, then hatches.
- Sometimes it is necessary to repeat steps 3-6 several times to fix the file.
nanoCAD can open and display 3D models, serving as an effective 3D CAD tool for viewing. However, when it comes to creating or editing 3D models, the free version of nanoCAD has its limitations. While you can use nanoCAD as a 3D modeler to view 3D designs, the functionalities to create or extensively edit these models is restricted in the free version. Try nanoCAD 24 with 3D Solid Modeling module to create, edit and modify 3D models.
nanoCAD Free has NO built-in support for directly converting files to PDF. However, with the release of nanoCAD 24, this functionality has been introduced, allowing users to easily export their designs to PDF format. This feature significantly enhances the software's utility, making it easier to share and print designs in a widely accessible and portable format.
Please make sure that the serial number you are using starts with the correct prefix, which should be NC5NVAS. You can verify this information on your account page for nanoCAD Free.
nanoCAD Free licenses cannot be activated on multiple computers as network licensing is not available for this version. Each license permits activation on a single computer only. For network licensing options, upgrade to the nanoCAD Platform.
The nanoCAD Free (v. 5) was released before before Windows 10 in 2013. We can’t guarantee its compatibility with the Windows OS 10/11. Whenever users experience these issues, we recommend completely uninstalling nanoCAD Free (v. 5) following the instructions provided below.
Then, install a more recent version of nanoCAD, such as the nanoCAD Platform. Start the newer version, close it, and then attempt reinstalling nanoCAD Free (v. 5). This process may resolve the compatibility issues.
- Uninstall program via Control Panel.
- Check and delete folder with NanoCAD files in: C:\Program Files\Nanosoft AS\
- Check and delete folder with NanoCAD files in: C:\ProgramData\Nanosoft AS\
- Check and delete folder with NanoCAD files in: C:\Users\\AppData\Roaming\Nanosoft AS\
- Call REGEDIT in command line and check if this brunch is clean: HKEY_CURRENT_USER\SOFTWARE\Nanosoft AS
Then, install a more recent version of nanoCAD, such as the nanoCAD Platform. Start the newer version, close it, and then attempt reinstalling nanoCAD Free (v. 5). This process may resolve the compatibility issues.
This error indicates a system malfunction in the operating system (OS) that altered the current date and time to a future date. Despite the current time settings appearing correct, the presence of files and Windows events with inaccurate dates has led the OS to determine the current date based on these files, not the date shown in the taskbar.
To address this issue, there are two primary solutions:
It's important to note that this error stems from an internal OS failure and is not related to nanoCAD. If attempts to synchronize the clock and correct file dates are unsuccessful, the problem might be with the BIOS battery; replacing it can resolve the issue.
If the suggested solutions don't fix the issue, your next steps are to either reinstall the operating system or install nanoCAD on another computer.
To address this issue, there are two primary solutions:
- Reinstall the OS.
- Identify and modify the creation date of files generated during the system failure. This step may also require clearing all Windows event logs.
It's important to note that this error stems from an internal OS failure and is not related to nanoCAD. If attempts to synchronize the clock and correct file dates are unsuccessful, the problem might be with the BIOS battery; replacing it can resolve the issue.
If the suggested solutions don't fix the issue, your next steps are to either reinstall the operating system or install nanoCAD on another computer.
nanoCAD Free (nanoCAD v.5) is available only in English.
You can also request an Italian version of nanoCAD Free from our Italian dealer Fabrizio Pieri - openoikos@gmail.com
nanoCAD Platform and all 5 modules are available in 5 languages: English, German, Spanish, French, and Korean.
You can also request an Italian version of nanoCAD Free from our Italian dealer Fabrizio Pieri - openoikos@gmail.com
nanoCAD Platform and all 5 modules are available in 5 languages: English, German, Spanish, French, and Korean.
